Year 2005 KOMAX Front/Back Wafer Print Machines

sold

Located in USA

Operational until taken out of service in early 2010

Specifications:

Megawatt production: approximately 20 MW (1000 wafers per hour)

Material Processed: Poly Silicon Wafers (Multi Crystalline Silicon)

Process: Wafer printing front/back after Silicon Nitride Coating

Wafer Size processing capability: 125mm and/or 156mm Square

ATS automatic loading and unloading systems

Other info:

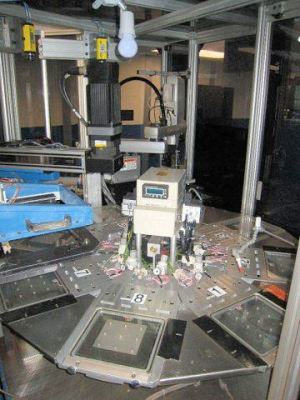

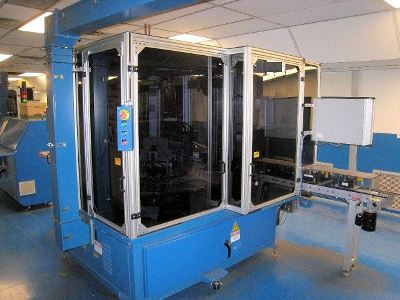

KOMAX Front Print, Rotary style, single head with Allen-Bradley Panel View 1000 Controller. Measures 13’ Long x 8’ Wide x 7.5’ H. 208 V, 3ph, 60 HZ input, 70 Amps. Includes Yamaha YK500XG high speed Scara ro-bot; operational manual. Includes Back Print, Rotary style, dual head, w Allen-Bradley Panel View 1000 Controller. 13’Long x 8’ Wide x 7.5’ high. 208 V, 3ph, 60 HZ input, 70 Amps. Includes Yamaha YK500XG high speed Scara robot; operational manual.
